Special profiles and tubes

Technical data

Shapes, Dimensions

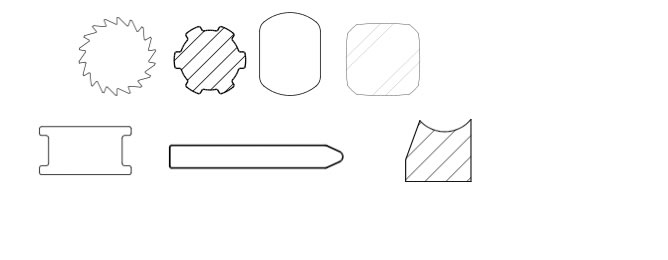

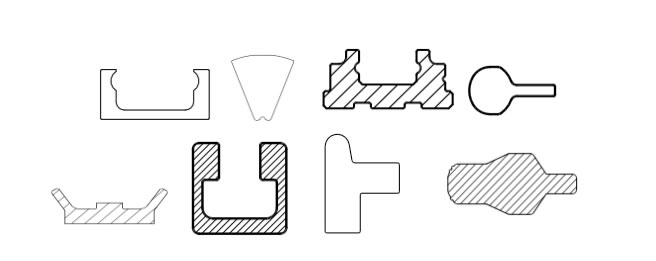

Solid sections :
  • square section ; 25 mm² to 6000 mm² (0.2kg/m to 45kg/m)
  • Usual tolerances ; type h11 (to h9 depending on shapes)
  • Common lengths : 3m to 5m, to 7 meters depending on profiles

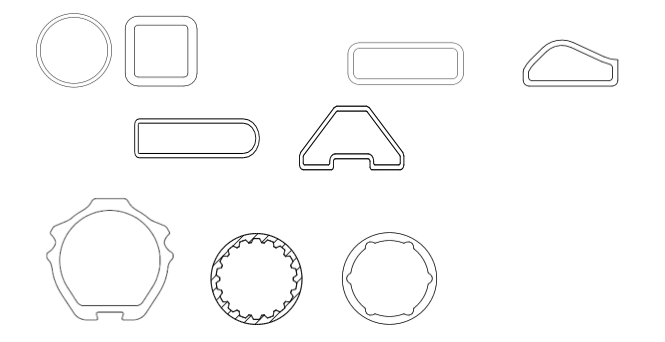

Hollow sections :
  • Cold drawn from hot rolled tubes or seamless tubes
  • Inside Dimension : min : 5 mm
  • Outside Dimension max :150 mm
  • Wall Thickness : 0.5 mm à 12 mm
  • Tolerances : according to EN 10305-1, commonly h11, up to h8 depending on shapes and dimensions
  • Common lengths : 3m to 6m, up to 8m depending on shapes

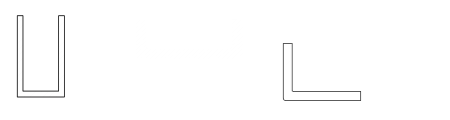

Open profiles :
  • cold drawn from flat stripes
  • Dimension maxi : 180 mm
  • Thickness mini : 1 mm
  • Tolerances : according to requirement (less tight on flexible area)
  • Common lengths : 3m to 6m, up to 6.5m depending on shapes





Finish

  • Surface treatment, pickling, descaling, phosphating, oiling
  • Possible finish : as drawn or lightly phosphate and oiled
  • Heat Treatment : normalization, stress release, etc
  • De-twisting, straightening, cut to length
  • On request we can achieve machining operations, coating and other

Grades and standards :

  • Carbon steel : EN10277-2
  • Alloy steel : EN10277-4 et EN10277-5
  • Screw cutting steels : EN10277-3
  • Tool steels, bearing steels, stainless steels

Square tubes

Discover our square tubes

EN SAVOIR +
Key Benefits

- Special shapes
- Metal savings
- Machined tolerances
- low cost tooling
- Volumes to meet your needs

EN SAVOIR +
Hexagonal tubes

Discover our hexagonal tubes

EN SAVOIR +
Presentation

As a specialist producer of precision cold drawn profiles in solid or tubular form we provide our customers « customized » Steel Profiles and Tubes manufactured in extended lengths and cut to length for the cost effective production of mechanical components.
